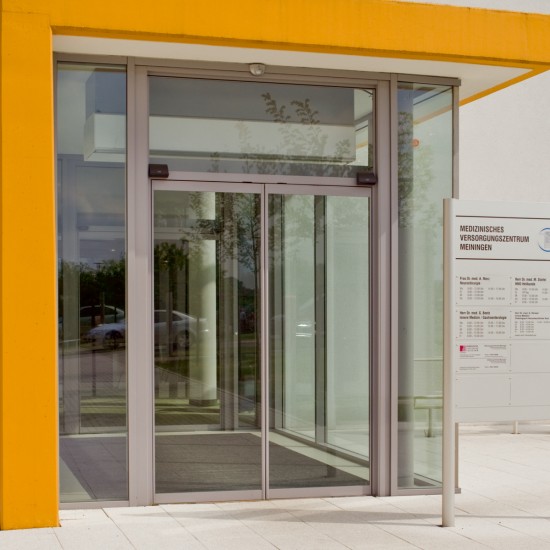

Dorma RST G space saving door

Space saving door (sliding swing door) with slender fine-frame profiles (G)

With its swivel and slide motion, the space saving door creates a wide passage and is therefore extremely suitable whenever space is tight. In addition, slender fine-frame profiles offer maximized transparency.

Space saving

The RST G space saving door opens with a swivel and slide motion. An operator-integrated swivel arm in conjunction with special floor bearing boxes allows this kind of movement and reduces the required lateral space (for stacking the door leaves) to a minimum.

Profiles provide transparency

Slender fine-frame profiles provide transparency, while optional overpanels can improve light penetration within the canopy.

DIN 18650

This type of door is tested to DIN 18650 and suitable for application in emergency exits and escape routes.

Fields of application

• Interior and exterior doors in narrow passage areas
• Public buildings
• Barrier-free access

Maximum door dimensions
(Door leaf weight and basic technical conditions can be critical)

• Maximum clear passage width: 2000 mm
• Maximum clear passage height: 2300 mm

Supplementary equipment/options

• Floor locking devices
• Electromechanical locking devices
• Door leaf sensors to DIN 18650
